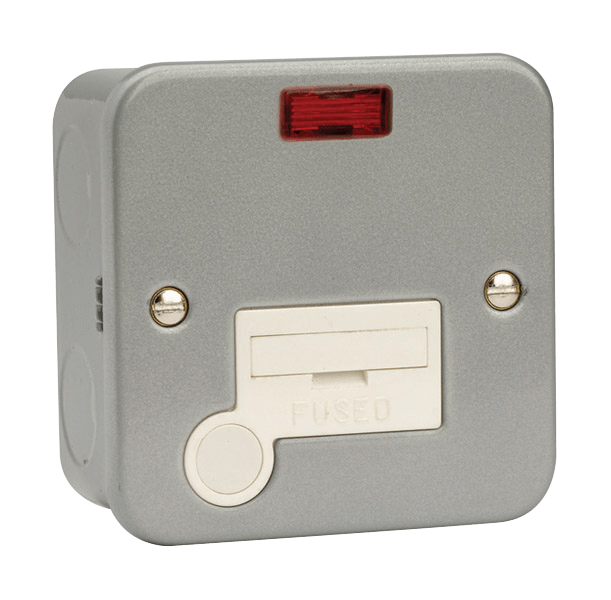

Features
- All screw terminals accessible from the top
- Front flex outlet option available
- Neon indicator
- Complete with 40mm deep back box
- Heavy duty metal clad grey finish with white insert
Play Video
Exit Zoom
Close Video
Description
Electrophoretically coated plate and back boxComplete with 40mm deep back boxTwin earth terminals
Electrophoretically coated plate and back boxComplete with 40mm deep back boxTwin earth terminals
Tech Specs
Twin Earth
Yes
Knockouts (mm)
5 x Ø20
Neon Indicator
Red
Dimensions (mm)
80(W) x 80(H) x 42(D)
Fused Fitted (A)
13
Rated Current (A)
13
Temp Rating (°C)
-5 to +40
Fixing Centres (mm)
60.3
Rated Voltage (V AC)
250
Terminal Capacity (mm²)
3 x 2.5 or 2 x 4
* For more technical information, please
download our technical data below.
download our technical data below.
Downloads
Sustainability
As a business, Scolmore Group strives to operate in a manner that helps preserve the environment,
promotes social responsibility, and contributes positively to economic viability for future
generations. This commitment involves taking a long-term view of business operations and
considering the impact of decisions on the planet, people, and profits.
Well-Being Performance
Mercury Free
