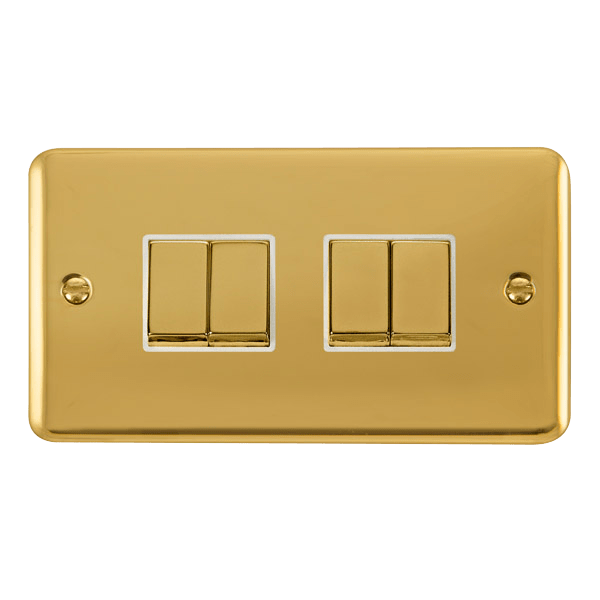

10AX 4 Gang 2 Way Plate Switch

DPBR414WH
Features
  • Facilitates 1 way or 2 way switching
  • Switches interchangeable with MiniGrid® modules
  • Smooth curve decorative plate design
  • Polished brass plate with white insert & gasket
DPBR414WH
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/DPBR414WH.png
DPBR414WH
Exit Zoom

10AX 4 Gang 2 Way Plate Switch

DPBR414WH
Features
  • Facilitates 1 way or 2 way switching
  • Switches interchangeable with MiniGrid® modules
  • Smooth curve decorative plate design
  • Polished brass plate with white insert & gasket
Description
A comprehensive range of premium decorative metal wiring accessories with smooth contemporary curves in a wide range of finishes to complement any room.
Tech Specs
Rated Voltage (V AC)
250
Rated Current (AX)
10
Plate Dimensions (mm)
146(W) x 88(H) x 8(D)
Fixing Centres (mm)
120.6
Terminal Capacity (mm²)
4 x 1.5 or 2 x 2.5
Min. Back Box Depth (mm)
25
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
