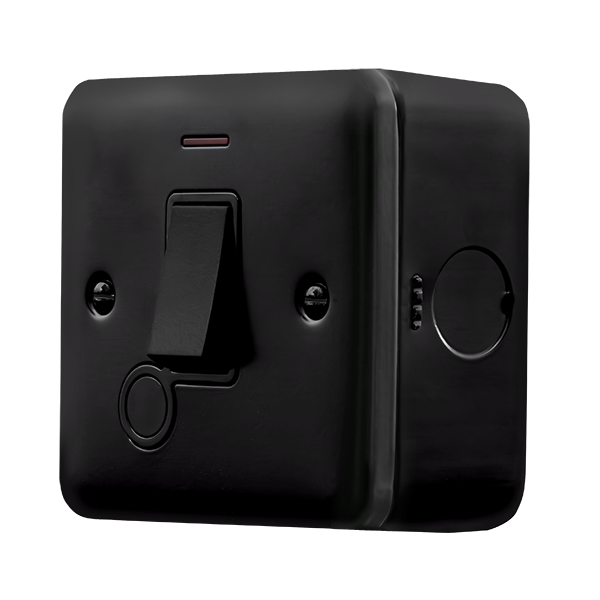

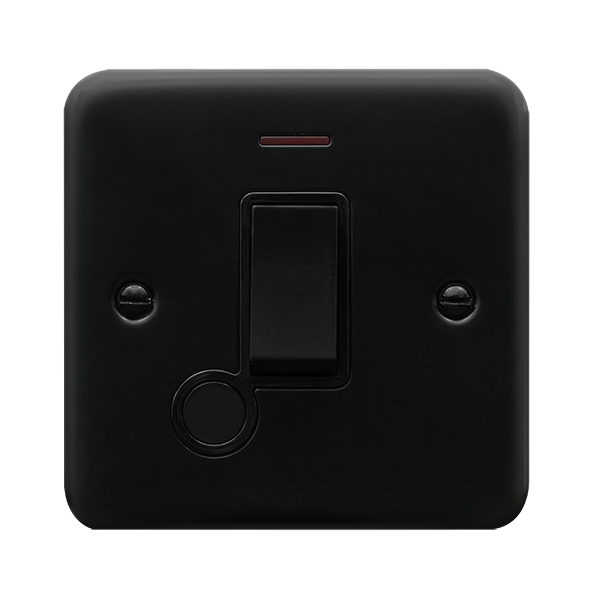

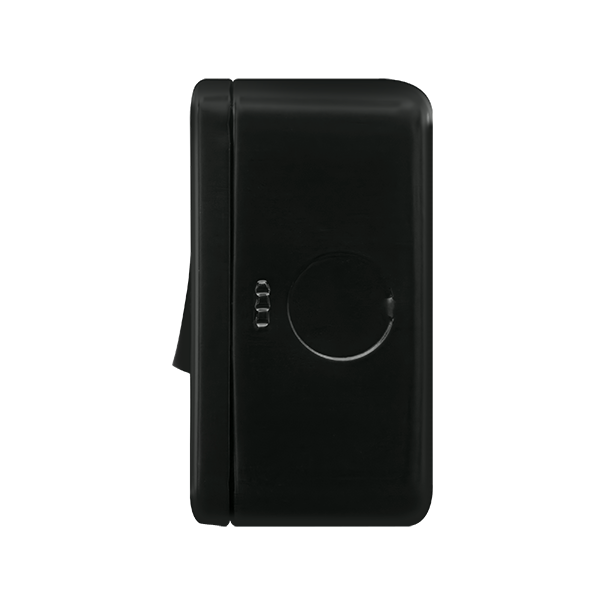

20A Double Pole Plate Switch With LED & Optional Flex Outlet

MCP023BK
Features
  • Black Finish
  • 20A Rating
  • Double Pole Switching
  • Twin Earth Facility
  • Optional Flex Outlet
  • LED Indicator
  • Supplied wiith 40mm deep backbox
MCP023BK
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP023BK.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP023BK_1.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP023BK_2.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP023BK_3.png
MCP023BK
Exit Zoom

20A Double Pole Plate Switch With LED & Optional Flex Outlet

MCP023BK
Features
  • Black Finish
  • 20A Rating
  • Double Pole Switching
  • Twin Earth Facility
  • Optional Flex Outlet
  • LED Indicator
  • Supplied wiith 40mm deep backbox
Description

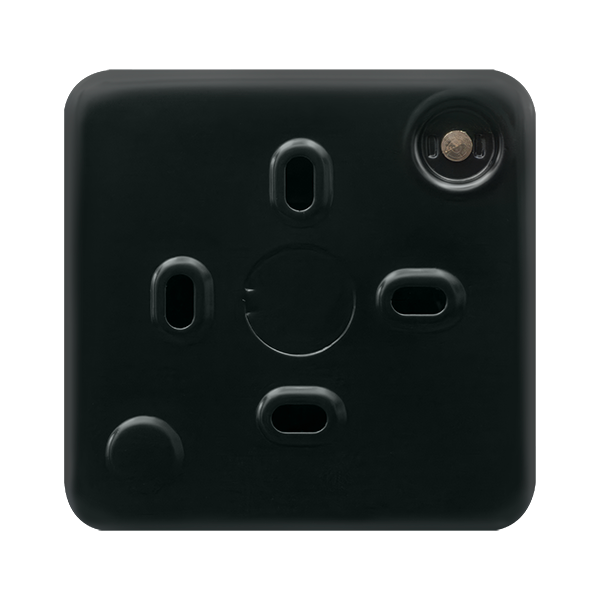

Electrophoretically coated plate and back boxComplete with 40mm deep back box
Tech Specs
Rated Voltage (V AC)
250
Rated Current (A)
20
Dimensions (mm)
88 (W) x 88 (H) x 48 (D)
Fixing Centres (mm)
60.3
LED Indicator
Red
Twin Earth
Yes
Terminal Capacity (mm²)
3 x 2.5 or 2 x 4
Ingress Protection
20
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
