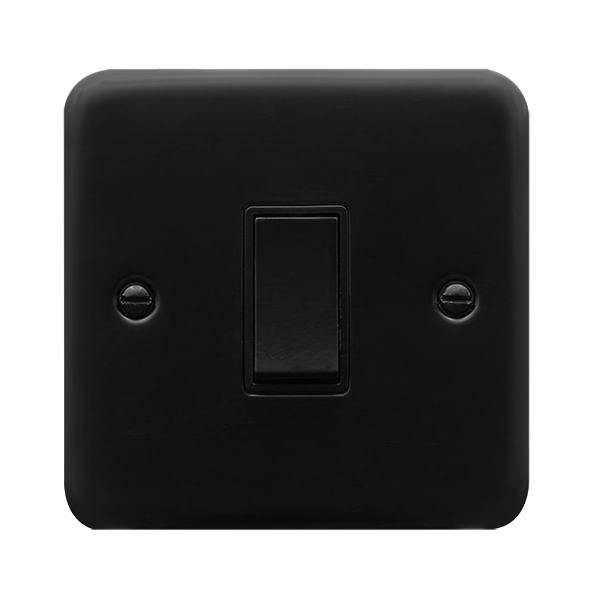

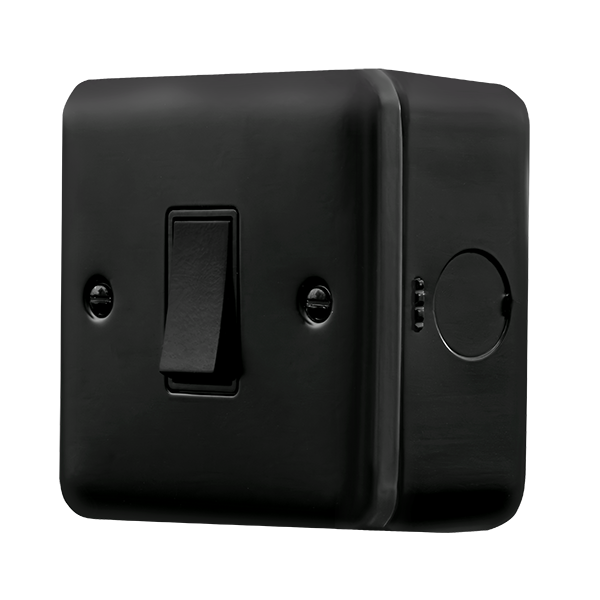

10AX 1 Gang Intermediate Plate Switch

MCP025BK
Features
  • Black Finish
  • 10AX Load Rating
  • Intermediate Switching
  • Suitable for Inductive Loads
  • Supplied wiith 40mm deep backbox
MCP025BK
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP025BK.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP025BK_1.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP025BK_2.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP025BK_3.png
MCP025BK
Exit Zoom

10AX 1 Gang Intermediate Plate Switch

MCP025BK
Features
  • Black Finish
  • 10AX Load Rating
  • Intermediate Switching
  • Suitable for Inductive Loads
  • Supplied wiith 40mm deep backbox
Description
Electrophoretically coated plate and back boxComplete with 40mm deep back boxInterchangeable MiniGrid module
Tech Specs
Rated Voltage (V AC)
250
Rated Current (AX)
10
Dimensions (mm)
88 (W) x 88 (H) x 48 (D)
Fixing Centres (mm)
60.3
Terminal Capacity (mm²)
4 x 1.5 or 2 x 2.5
Ingress Protection
20
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
