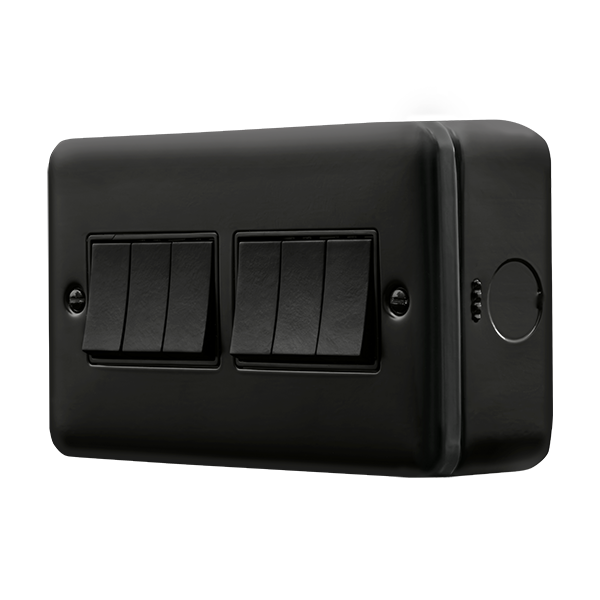

10AX 6 Gang 2 Way Plate Switch

MCP105BK
Features
  • Black Finish
  • 10AX Load Rating
  • 2 Way Switching
  • Suitable for Inductive Loads
  • Supplied wiith 40mm deep backbox
MCP105BK
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP105BK.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP105BK_1.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP105BK_2.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP105BK_3.png
MCP105BK
Exit Zoom

10AX 6 Gang 2 Way Plate Switch

MCP105BK
Features
  • Black Finish
  • 10AX Load Rating
  • 2 Way Switching
  • Suitable for Inductive Loads
  • Supplied wiith 40mm deep backbox
Description
Electrophoretically coated plate and back boxComplete with 40mm deep back boxInterchangeable MiniGrid module
Tech Specs
Rated Voltage (V AC)
250
Rated Current (AX)
10
Dimensions (mm)
148 (W) x 88 (H) x 48 (D)
Fixing Centres (mm)
120.6
Terminal Capacity (mm²)
4 x 1.5 or 2 x 2.5
Ingress Protection
20
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
