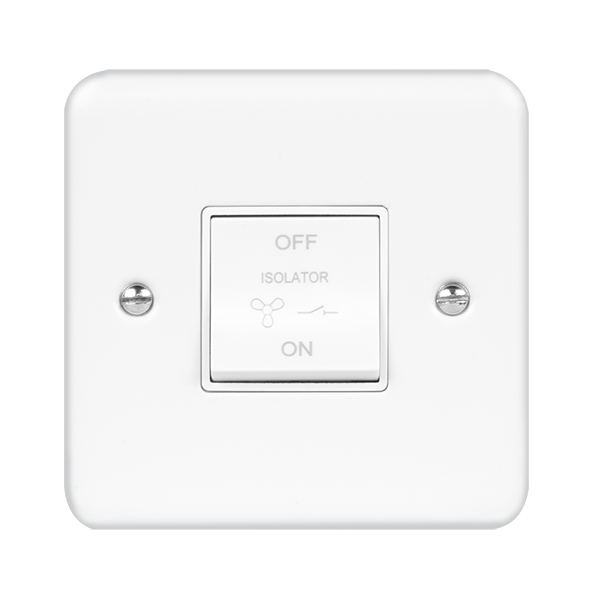

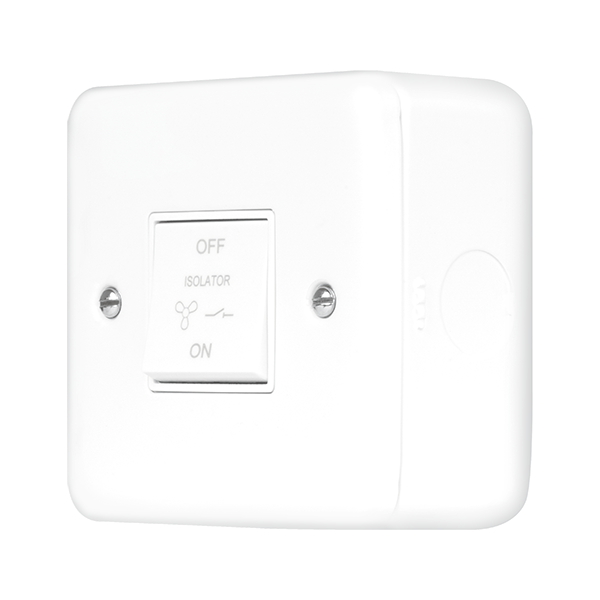

10A 3 Pole Fan Isolation Plate Switch

MCP020PW
Features
  • Polar White Finish
  • 10A Load Rating
  • 3 Pole Switching
  • Supplied wiith 40mm deep backbox
MCP020PW
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP020PW.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP020PW_1.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP020PW_2.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP020PW_3.png
MCP020PW
Exit Zoom

10A 3 Pole Fan Isolation Plate Switch

MCP020PW
Features
  • Polar White Finish
  • 10A Load Rating
  • 3 Pole Switching
  • Supplied wiith 40mm deep backbox
Description
Electrophoretically coated plate and back boxComplete with 40mm deep back box
Tech Specs
Rated Voltage (V AC)
250
Rated Current (AX)
10
Dimensions (mm)
88 (W) x 88 (H) x 48 (D)
Fixing Centres (mm)
60.3
Terminal Capacity (mm²)
4 x 1.5 or 2 x 2.5
Ingress Protection
20
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
