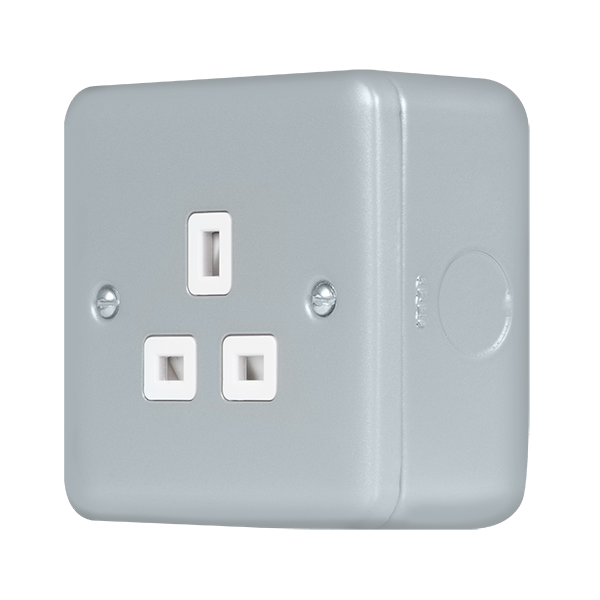

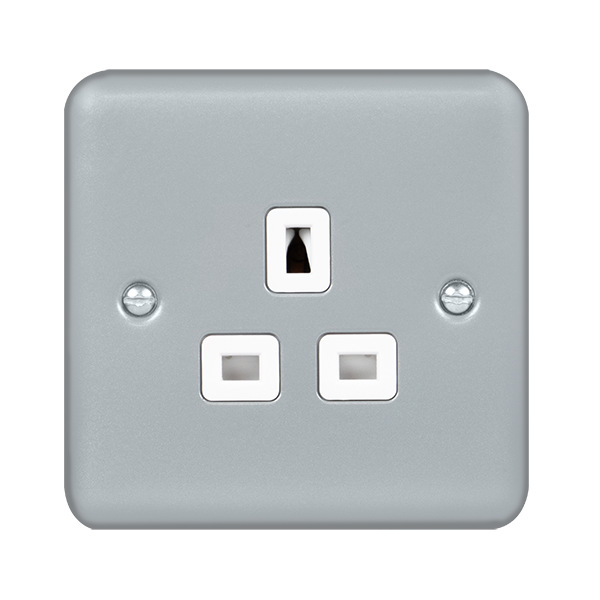

13A 1 Gang Unswitched Socket Outlet

MCP530
Features
  • Dusty Grey Finish
  • 13A Load Rating
  • Unswitched
  • Supplied wiith 40mm deep backbox
MCP530
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP530.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP530_1.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP530_2.png
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/MCP530_3.png
MCP530
Exit Zoom

13A 1 Gang Unswitched Socket Outlet

MCP530
Features
  • Dusty Grey Finish
  • 13A Load Rating
  • Unswitched
  • Supplied wiith 40mm deep backbox
Description
Electrophoretically coated plate and back boxComplete with 40mm deep back box
Tech Specs
Rated Voltage (V AC)
250
Rated Current (A)
13
Dimensions (mm)
88 (W) x 88 (H) x 48 (D)
Fixing Centres (mm)
60.3
Terminal Capacity (mm²)
3 x 2.5 or 2 x 4
Ingress Protection
20
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
